I Talk, You Do

Follow Along

These slides are only useful if you can match them to your computer.

• Open the example assignment project (or something else) in RStudio
• Open the main Quarto notebook .qmd and the markdown README.md
• When I talk about an RStudio feature, find and use in your RStudio interface
• When I talk about a Quarto feature, find it in the example notebook and try it out
• If you can’t directly connect what I’m talking about to what you’re seeing, STOP ME.

The Tools

Markdown

Markdown is a lightweight markup language for creating formatted text using a plain-text editor.

• Easy to read, write, and convert to rich text formats
• Widely used in documentation, blogging, and collaborative platforms
• Comes in “flavors” building on each other

1. Standard Markdown
   1. GitHub Flavored Markdown (used by READMEs on GitHub)
   2. Pandoc Markdown
      1. R Markdown
      2. Quarto (aka R Markdown 2.0)
      3. many more
   3. many, many more

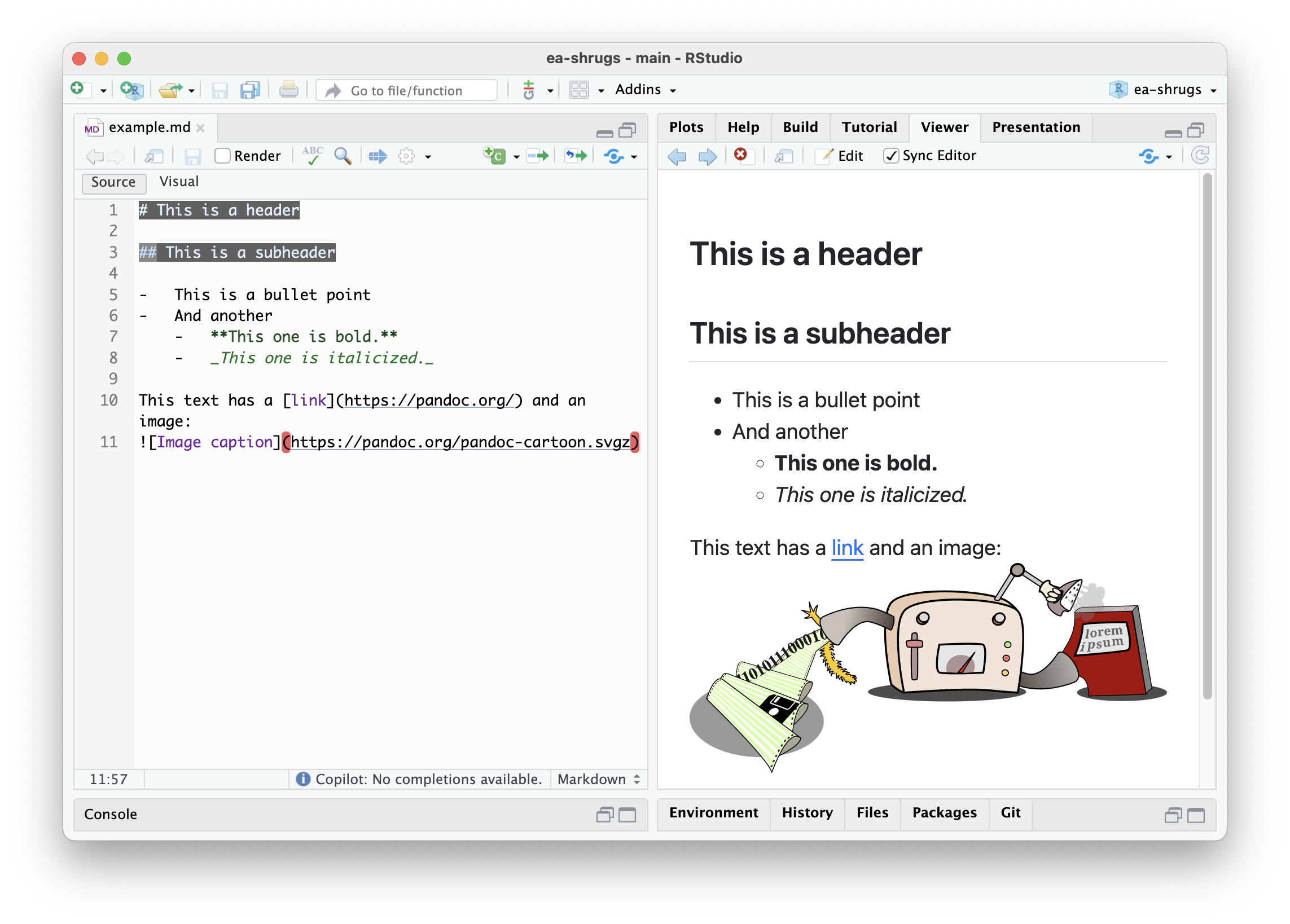

# This is a header

## This is a subheader

-   This is a bullet point
-   And another
    -   **This one is bold.**
    -   _This one is italicized._

This text has a [link](https://pandoc.org/) and an image:
![Image caption](https://pandoc.org/pandoc-cartoon.svgz)

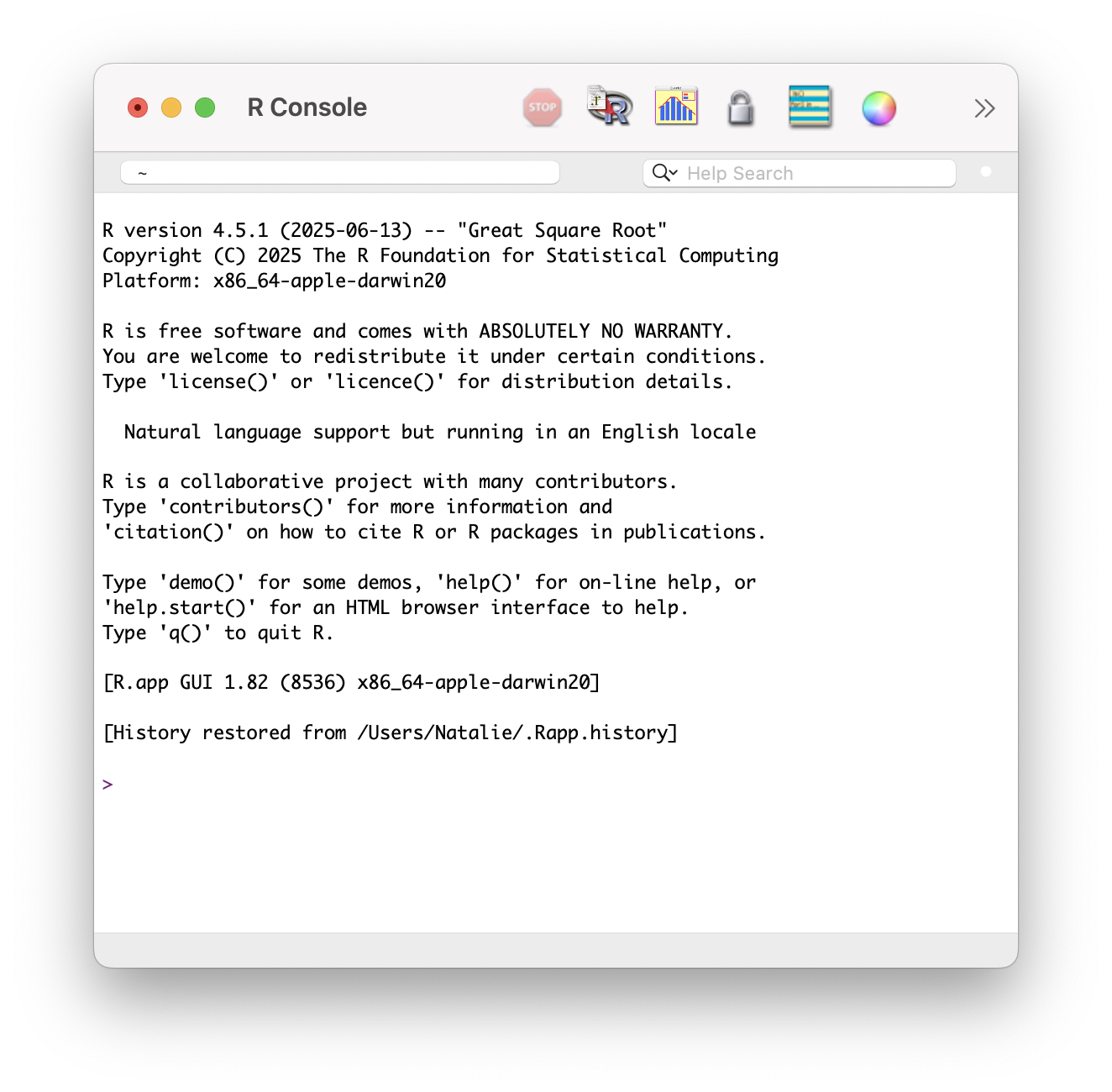

R

R is a programming language and computing environment.

• Developed for statistics and data science
• Open source and free
• Can be run from command line or basic console

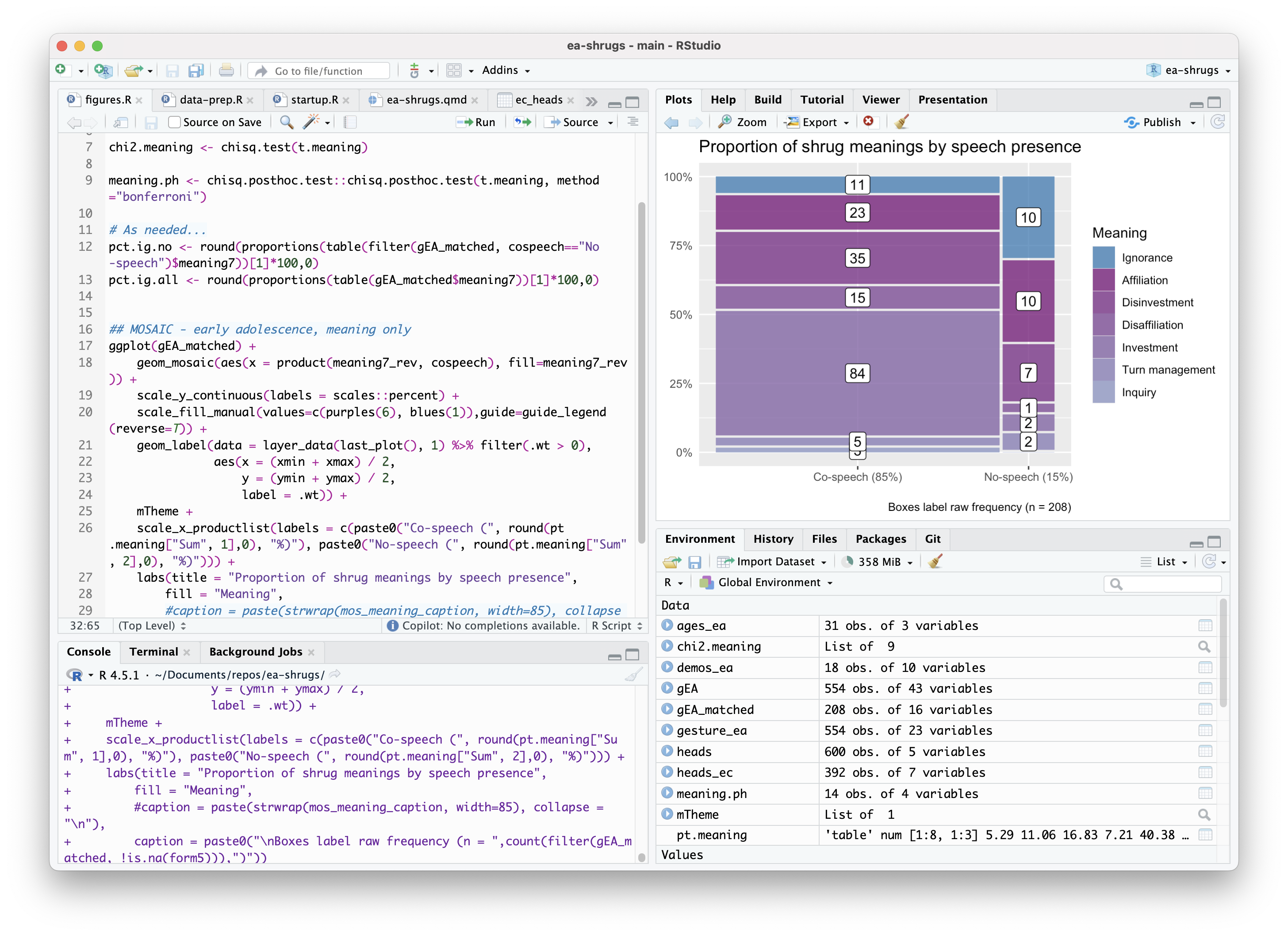

RStudio

RStudio is an Integrated Development Environment (IDE) for R.

• Provides a user-friendly interface
• Enhances productivity with:
  • Syntax highlighting
  • Code completion
  • Project management
  • Integrated help
  • Plot viewing
  • Package management
  • Git integration

# Assign a string to a variable
rstudio_is_cool <- paste("R", "and", "RStudio", "work", "together!")

# Print the variable
rstudio_is_cool

[1] "R and RStudio work together!"

R is the underlying programming language and statistical computing environment. You can run R from the command line or basic R console, but it’s quite painful.

RStudio is an IDE - an Integrated Development Environment - that makes working with R much more pleasant and productive. It provides: - Syntax highlighting - Code completion - Project management - Integrated help - Plot viewing - Package management - Git integration - And much more

• Think of it like the difference between:
  • A recipe (R) vs. a fully equipped kitchen (RStudio)
  • A text file (R) vs. Microsoft Word (RStudio)
  • Raw ingredients (R) vs. a meal prep service (RStudio)

RStudio is designed for R, with limited functionality for other languages. If you’re already using another IDE for python or another language, there are IDEs that support R as well. R has a very different target audience (statisticians, data scientists) compared to general-purpose IDEs (software developers), so while these other IDEs can get the work done, they don’t have the same level of integration and ease of use for R-specific tasks.

RSTUDIO IS THE DE FACTO STANDARD IDE FOR R PROGRAMMING. Even if you settle on an alternative preferred IDE, you should still be very familiar with RStudio.

Quarto

Quarto is an open-source scientific and technical publishing system built on Pandoc.

• Supports multiple programming languages (R, Python, Julia, etc.)
• Enables creation of dynamic documents, presentations, websites, and reports
• Integrates with RStudio IDE for seamless workflow

# Assign a string to a variable
quarto_is_cool <- paste("Quarto", "is", "cool!")

# Print the variable
quarto_is_cool

[1] "Quarto is cool!"

Created by Posit, makers of RStudio “next generation” of R Markdown Q can do anything Rmd can do, so all existing Rmd work can (theoretically) transfer to qmd notebooks and retain full functionality Works with R, python, Julia, and observable javascript Built on systems of complex and flexible YAML headers Publish documents (what we call manuscripts) and also: websites, manuscripts, interactive dashboards, presentations, and more Optionally uses extensions (like apaquarto) for additional customization and functionality

RStudio Interface

Pane Layout

1. Top Left: Source pane (your scripts and documents)
2. Top Right: Environment, History
3. Bottom Left: Console, Terminal, Background Jobs
4. Bottom Right: Files, Plots, Help, Viewer

• The layout is customizable, but this default works well for most people
• Each pane can contain multiple tabs
• You can resize panes by dragging the borders
• You can minimize/maximize panes
• The layout will make more sense as we start using each component

Pane Layout: Custom

1. Top Left: Source pane (your scripts and documents)
2. Top Right: Plots, Help, View
3. Bottom Left: Console, Terminal, Background Jobs
4. Bottom Right: Environment, Files, Packages, Git

Customize!

I hate the default layout and always change it. You should figure out what works for you:

Tools > Global Options > Pane Layout

• The layout is customizable, but this default works well for most people
• Each pane can contain multiple tabs
• You can resize panes by dragging the borders
• You can minimize/maximize panes
• The layout will make more sense as we start using each component

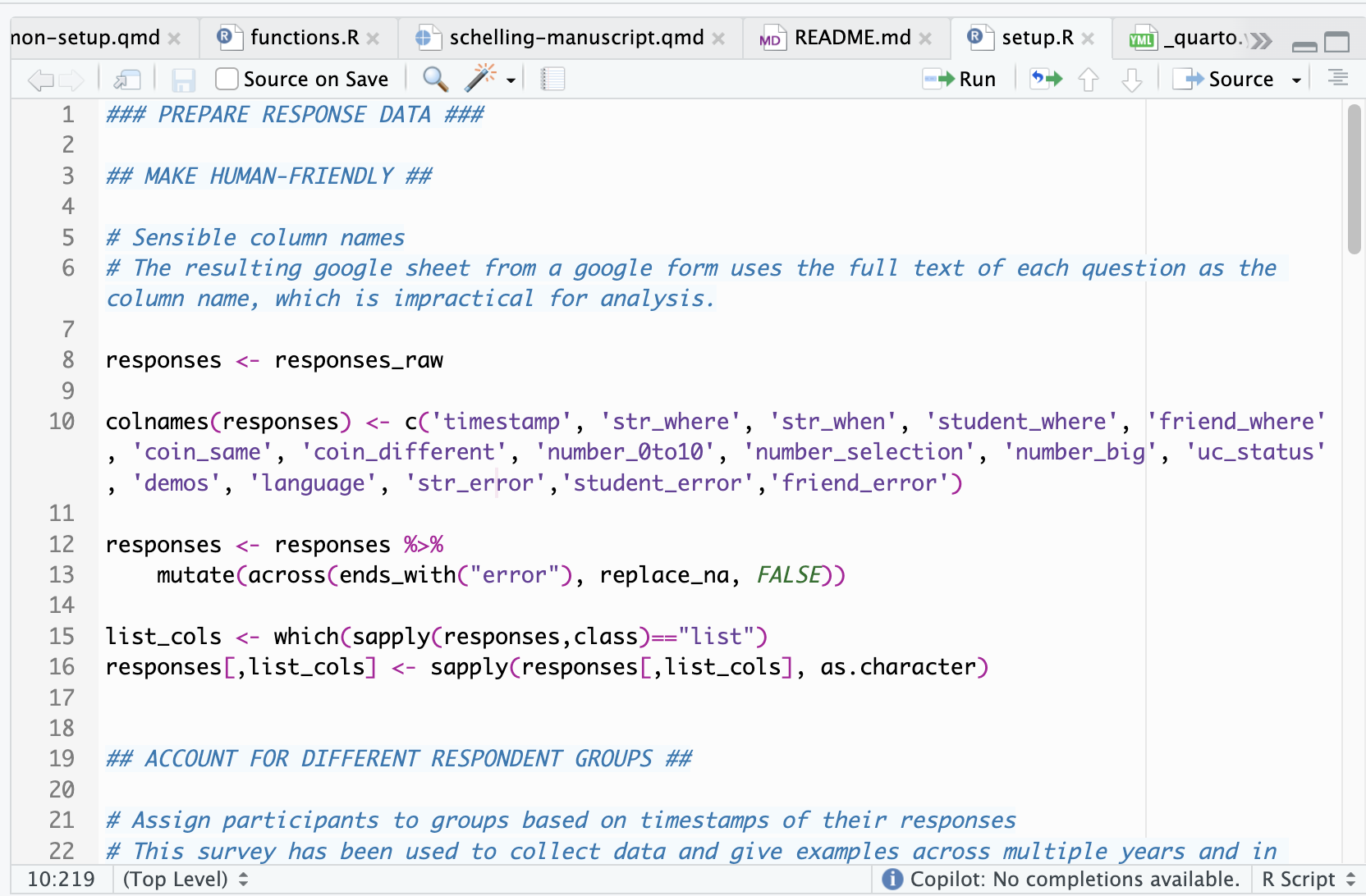

Source Pane

View, write, edit text:

• View/edit text files (.R, .qmd, .Rmd)
• View data objects (read-only)
• Multiple files open as tabs
• Pop out files with “show in new window”

Running code from source:

• Cmd/Ctrl + Enter: run selected code (or current line)
• Cmd/Ctrl + Shift + Enter: run entire file

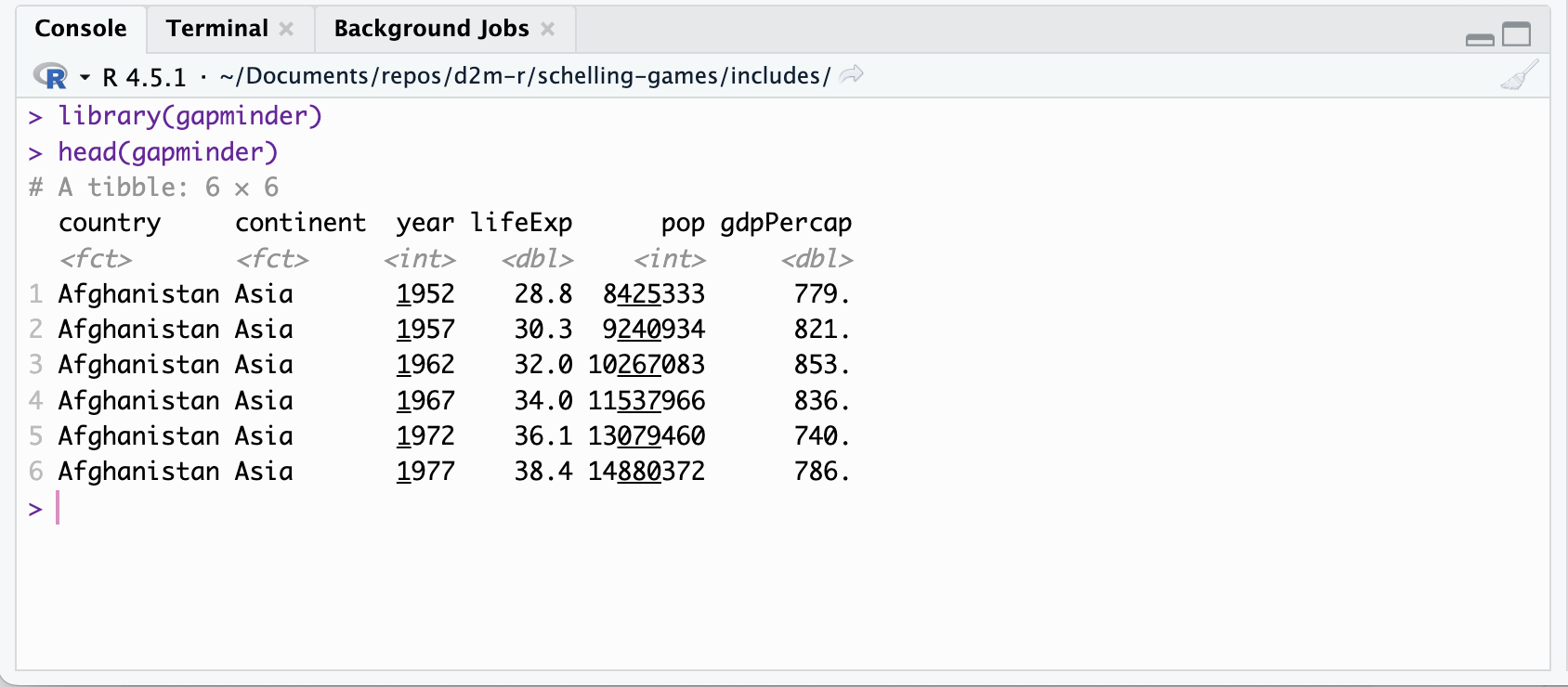

Console Pane: Three Tabs

Console

• Execute R code
• View output
• Shows errors, warnings, and messages from R

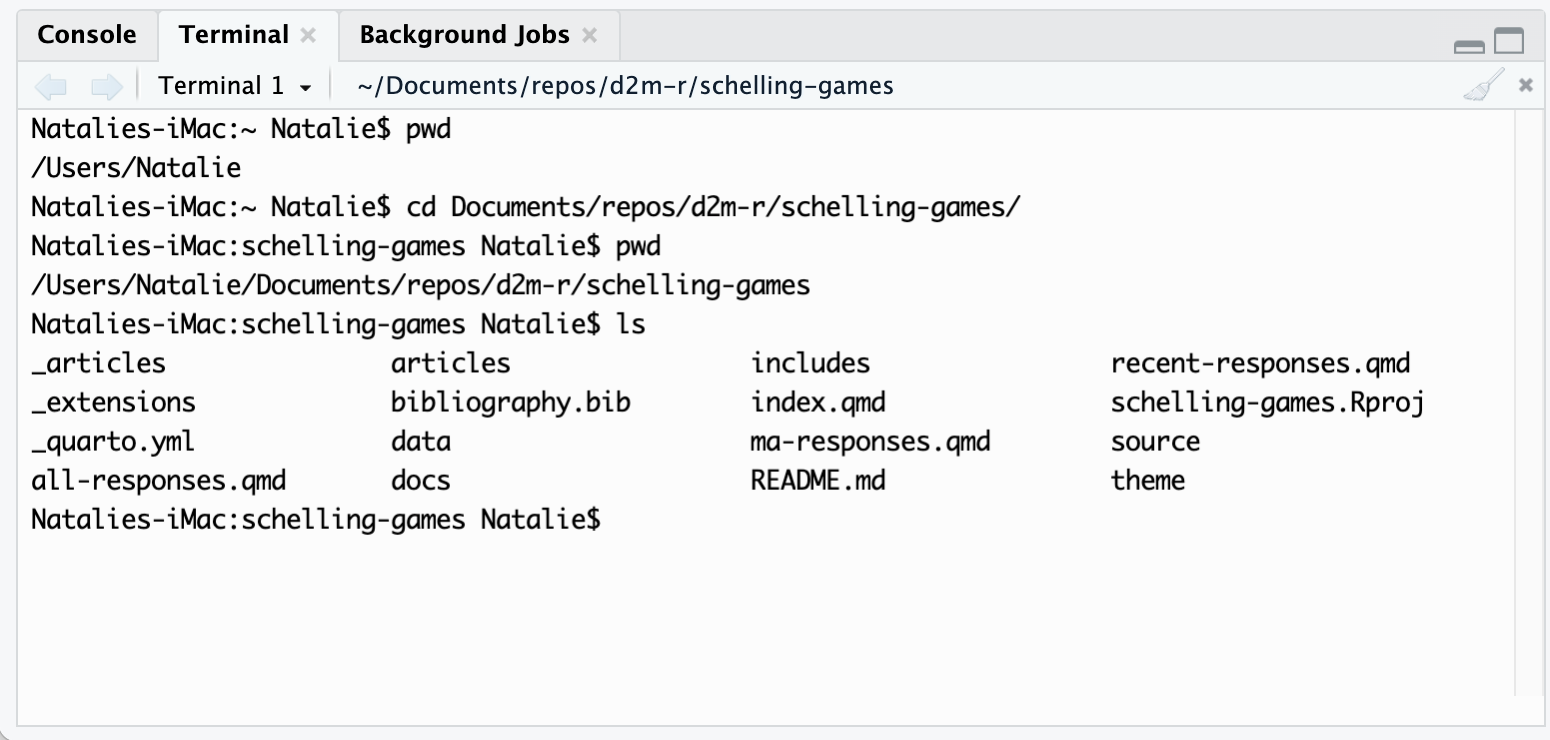

Terminal

• Bash/shell command line interface
• Git, Quarto, system commands
• Does NOT run R code

Background Jobs

• Monitor rendering processes
• Errors from Quarto or knitr rendering
• Stop sign to force quit

Console vs. Source Scripts

R code can be run in both the console and source scripts, but they serve different purposes:

Task	Source Script	Console
Quick calculations		✓
Testing new functions		✓
Creating objects	✓
Data wrangling	✓
Publication plots	✓
Reproducible analyses	✓

If you might need it again, use a source script.

Environment Pane

Shows all objects loaded in your R session

• Dataframes, variables, functions
• Click blue arrow to expand objects
• Click name to view in source pane
• Broom icon clears environment

Environment resets when R session restarts. Rerun code to recreate objects.

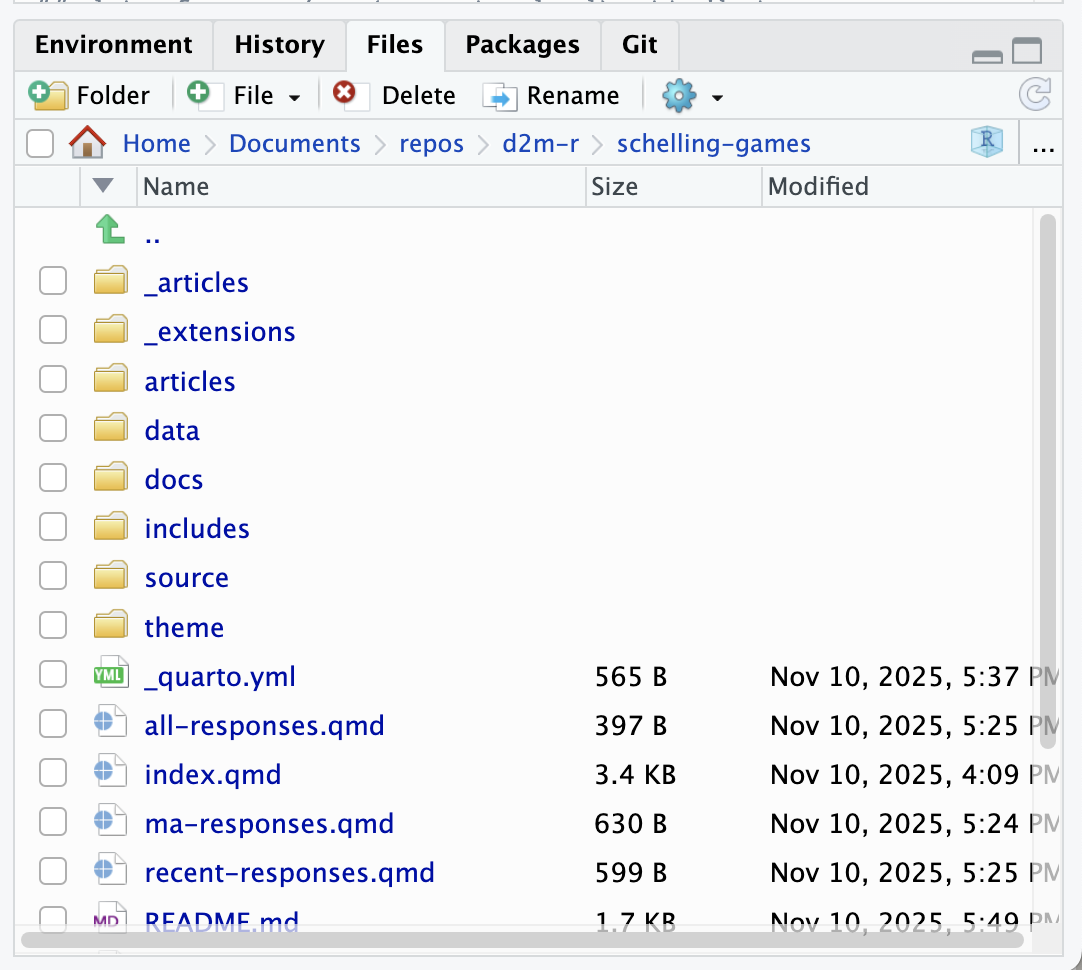

Files Pane

Directory navigator + working directory management

• Navigate folders like Finder/Explorer
• Create, delete, rename files
• More → Set as Working Directory

Working directory matters for file paths

• ❌ Absolute: "/Users/Natalie/Documents/repos/D2M-R/data/mydata.csv"
• ✓ Relative: "data/mydata.csv"

RStudio projects

• Project file (.Rproj) sets working directory as project root
• 1 Project = 1 Repo
• Open projects in different sessions

Keep project files connected to their projects ONLY. Don’t open files from one project while working in another, because relative paths won’t work–and you need relative paths! Top right of RStudio window shows current project name. Click to switch projects. Click the pop-out icon to open the project in a new session.

• Project file (.Rproj) sets working directory as project root
• 1 Project = 1 Repo
• Open projects in different sessions

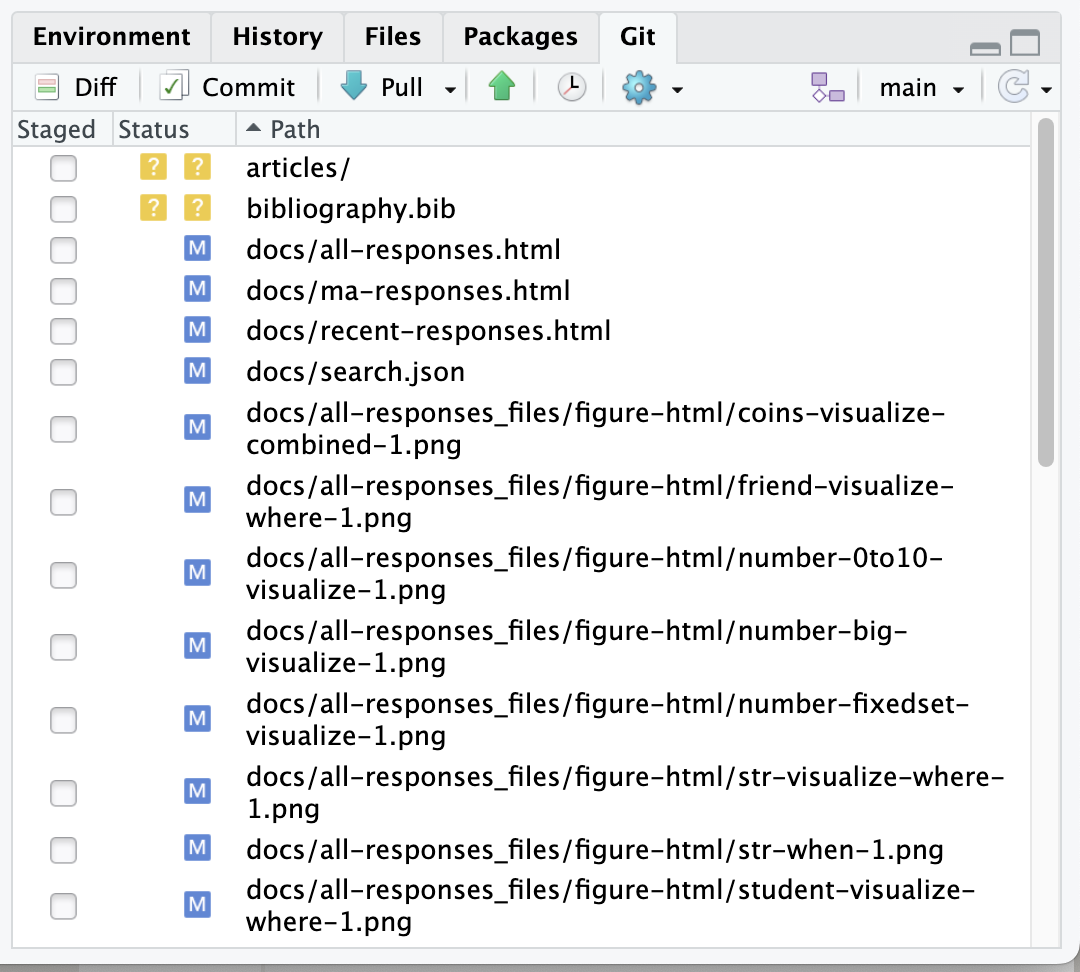

Git Pane

Perform basic git operations from RStudio

• View changed files since last commit
• Stage files (checkbox)
• Commit and history buttons open detailed window
• Pull from and push to remote

Other Important Panes

Packages pane:

• View installed/loaded packages
• Update packages
• Click name → documentation
• Don’t install from pane, use install.packages() in code

Help pane:

• Function documentation
• Search or use ?function_name in console

Plots pane:

• Visualizations from R scripts
• Export, zoom, clear, save image
• Code: prefer ggsave() for reproducibility

Viewer pane:

• Rendered HTML, Quarto documents
• Shiny apps, interactive visualizations
• “Open in Browser” to pop out

Key Takeaways

1. Source pane for writing code you want to keep
2. Console for quick tests (check your tab!)
3. Use relative file paths and RStudio projects
4. Git pane for standard workflow; terminal for problems

Code vs. GUI

Nearly all pane actions have code equivalents. Only use GUI shortcuts for things you already know how to do in code!

RStudio Projects with Quarto

Project Makeup

• RStudio Project file (.Rproj): manages project settings
• R scripts (.R): contains (only) R code
• Markdown files (.md): contains (only) formatted text
• Quarto file (.qmd): contains combination of text, code, and formatting instructions

R Markdown vs. Quarto

R Markdown documents/notebooks (.Rmd) combine R code and markdown text to produce dynamic reports.

.Rmd = .R + .md

Quarto documents (.qmd) are the next generation of R Markdown notebooks, with more features and better multi-language support. Quarto is backward compatible with R Markdown, so all R Markdown documents can be used as Quarto documents.

.qmd = .Rmd^2

Quarto Documents

Unify your workflow producing a scientific report¹, reduce errors, and save time.

Use one (1!) document to:

1. Read in and prep data
2. Make figures and tables
3. Run statistical analyses
4. Write report narrative text
5. Cite papers
6. Add in-line, dynamic results
7. 1-click render to multiple formats (HTML, PDF, Word, slides, etc.)

1. Among other things!

Quarto Workflow

Create your RStudio project & repo

Create your Quarto .qmd document

Put code in “chunks” (inline .R scripts)

Write text with Quarto markdown

Customize YAML header

Cite sources with BibTeX

Set options for your output

Knit your document to desired format

1. Create your RStudio project & repo
   • Use RStudio to create a new project in a new directory
   • Keep all the standard git repo contents in it
2. Create your Quarto .qmd document
   • any settings in creation are changeable later
3. Put code in “chunks” (inline .R scripts)
   • data read-in, summary tables, figures, analysis…
   • anything you could write in a dedicated R script
   • can include chunk-specific YAML options
4. Write text with Quarto markdown
   • headers, formatted text, footnotes, etc.
5. Customize YAML header
   • title, author, date, output format(s)…
6. Cite sources with BibTeX
   • create a .bib file with references
   • dynamically cite in text
7. Set options for your output
   • figure sizes, code visibility, themes…
8. Knit your document to desired format
   • HTML, PDF, Word, slides, etc.

Anatomy of a Quarto Document

YAML Header

---
title: "Diamond sizes"
date: 2016-08-25
format:
    html:
        toc: true
        code-fold: true
---

Code Chunks

```{r}
#| label: setup
#| include: false
library(ggplot2)
library(dplyr)

smaller <- diamonds %>%
  filter(carat <= 2.5)
```

Markdown Text Content

We have data about `r nrow(diamonds)` diamonds. Only `r nrow(diamonds) - nrow(smaller)`
are larger than 2.5 carats. The distribution of the remainder is shown below:
    <!-- See figure below -->

YAML

YAML Header

```{yaml}
---
title: "Diamond sizes"
date: 2016-08-25
format:
    html:
        toc: true
        code-fold: true
---
```

Yet Another Markup Language

• Rhymes with 🐪
• Interchangeably .yaml and .yml
• Human-readable data serialization format
• Always the very first thing in a Quarto document
• Specifies document metadata and options
• Fenced with --- at top and bottom
• Hierarchical structure using indentation
  • Whitespace sensitive!

Code Chunks

Code Chunk

```{r}
#| label: setup
#| include: false
library(ggplot2)
library(dplyr)

smaller <- diamonds %>%
  filter(carat <= 2.5)
```

R Script Containers

• Fenced with triple backticks and {r}
• Chunk options in YAML-like format
  • Learn about chunk options
• Can (should) be named with unique label option
• Contain R code and comments
• Executed in order during rendering
• Output (text, figures) inserted into final document

• Fenced with triple backticks and {r}
• Optional chunk options in YAML-like format
  • Use “comment syntax”, e.g., #| option: value
• Can (should) be named with label option
  • Labels must be unique!
• Contain R code and comments
• Executed in order during rendering
  • Objects created are available to later chunks
  • Chunks can be executed independently as you work (but not when you render)
• Output (text, figures) inserted into final document
  • Unless options say otherwise

Code Chunks: Sourcing External R Scripts

Source Scripts

```{r}
#| label: source-data-cleaning

source("scripts/data-cleaning.R")
```

Source .R Files

• Chunks should do 1 and only 1 easily nameable thing
• Use source() to “inject” code from other files
• Full contents of sourced script runs as if it were in the chunk
  • Only works with R scripts (.R), not other file types
• Common uses:
  • Setup tasks
  • Pre-processing scripts
  • Function definitions
  • Complex analysis

• Chunks should do 1 and only 1 easily nameable thing
• Longer scripts/functions should be in separate R scripts, then source them into the document
• Full contents of sourced script runs as if it were in the chunk

  • Only works with R scripts (.R), not other file types

  • If the contents of the file wouldn’t run in a chunk, the file can’t be sourced into a chunk

  • Setup tasks (define themes, load libraries, set default options)

Markdown Text Content

Markdown Text Content

We have data about `r nrow(diamonds)` diamonds. Only `r nrow(diamonds) - nrow(smaller)`
are larger than 2.5 carats. The distribution of the remainder is shown below:
    <!-- See figure below -->

Formatted Narrative Text

• “Narrative” = lit review, methods, discussion, etc.
• Anything outside YAML and chunks is treated as markdown
• Optionally include HTML for advanced formatting
  • Uses HTML comment syntax: <!-- comment -->
• Inline R code with `r code` syntax
  • Can reference sourced and chunk code
• Can include figures, tables, citations, etc. as an alternative to rendering from code chunks

Demo

RStudio & Quarto Walkthrough

1. Create a new RStudio project
2. View/change global options
3. Create README.md markdown file and setup.R script
4. Create Quarto manuscript.qmd document with:
   1. YAML
   2. Chunks w/ source() and inline code
   3. Markdown text with inline R code
5. Render the Quarto document to HTML
